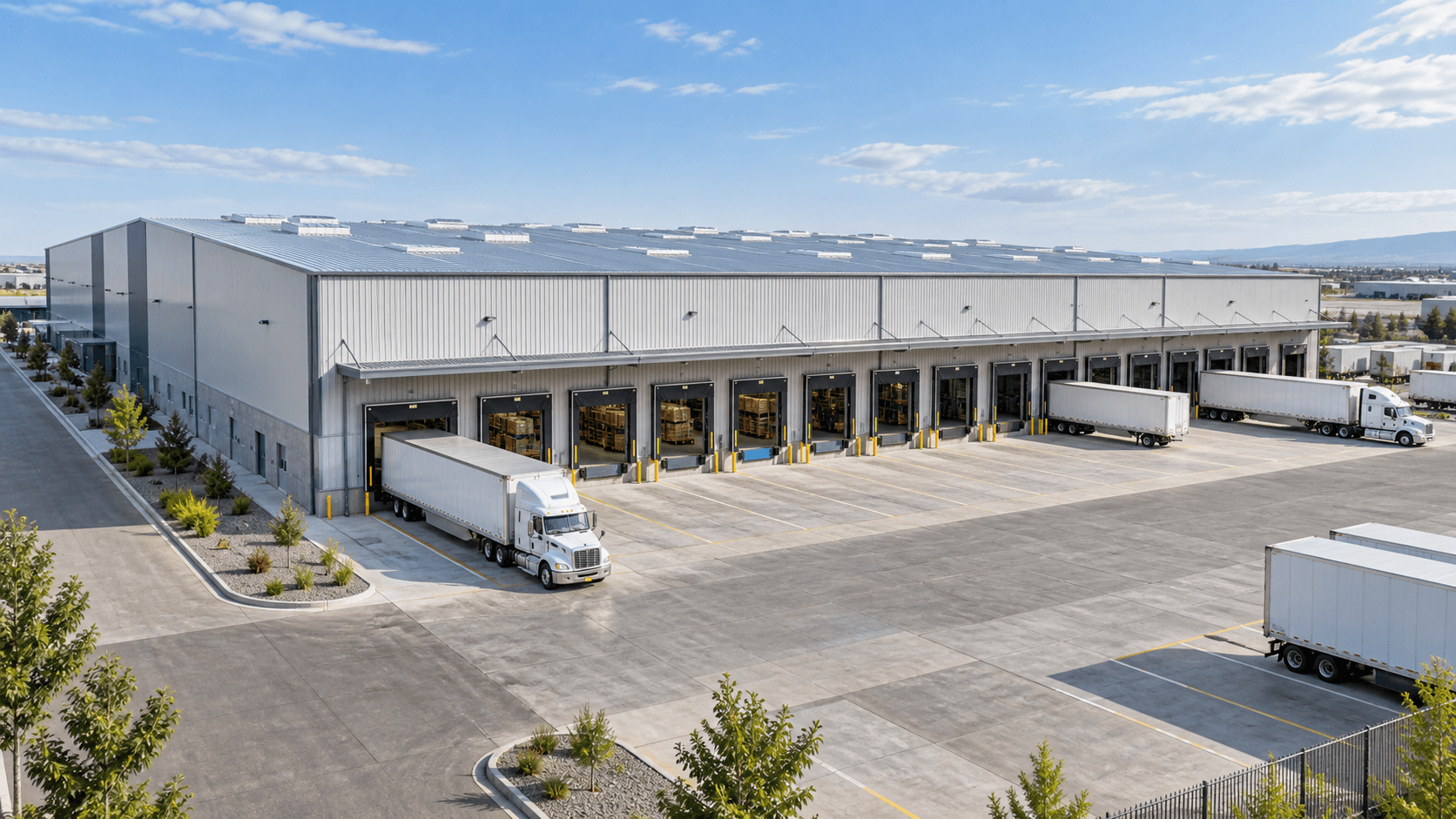

Steel Logistics Distribution Center Building for High-Throughput Operations

A steel logistics distribution center building is more than a weatherproof enclosure. It is the physical operating system behind receiving, storage, picking, packing, dispatch, and future automation. A low initial steel price can become expensive when the structural grid conflicts with racking, loading docks cannot handle peak truck traffic, or the roof geometry restricts conveyors and fire-protection equipment.

For developers, logistics operators, contractors, and procurement teams, the best quotation is the one that clearly defines performance and scope. This guide explains the decisions that shape capacity, construction speed, lifecycle cost, and expansion potential. It also provides a practical framework for comparing suppliers before drawings and prices are treated as equivalent.

What Is a Steel Logistics Distribution Center Building?

A logistics warehouse is designed around material flow rather than storage area alone. Typical facilities include high-bay racking zones, staging lanes, mezzanines, battery-charging areas, loading docks, offices, utility rooms, and fire-protection systems. A well-coordinated steel logistics distribution center building accommodates these functions without creating avoidable obstructions or maintenance problems.

Primary frames commonly use welded or hot-rolled columns and rafters, while secondary members support the roof and wall cladding. Bracing transfers wind and seismic forces to the foundations. Insulated metal panels, skylights, ventilation, and drainage complete the enclosure. Depending on project size and shipping constraints, the building may use clear-span, multi-span, or modular framing.

The governing design basis should be stated in the contract. International projects may use a national code, Eurocodes, or standards such as ANSI/AISC 360 for structural steel, together with a project load standard. ISO 2394 provides internationally recognized reliability principles. These references are not interchangeable; the engineer of record must confirm the applicable code, load combinations, approval route, and local authority requirements.

8 Steel Logistics Distribution Center Building Decisions

1. Confirm the Material-Flow Plan Before Fixing the Column Grid

The operating layout should lead the structural concept. Map inbound unloading, receiving inspection, reserve storage, picking, value-added work, outbound staging, and dispatch. Then identify forklift aisles, pedestrian routes, conveyor crossings, and areas reserved for future automation.

Column spacing that appears economical in a frame calculation can reduce usable pallet positions or force awkward rack runs. A good steel logistics distribution center building aligns columns with rack flues, aisle boundaries, dock modules, and fire-protection clearances. Procurement documents should show the proposed grid over the equipment layout so bidders price the same operational solution.

2. Select Clear Span, Multi-Span, and Eave Height Deliberately

Clear-span frames maximize layout flexibility but become heavier as width increases. Multi-span systems can reduce steel tonnage, although interior columns must be coordinated with storage and traffic. The correct decision depends on building width, rack layout, local loads, lifting equipment, and the value of uninterrupted floor area.

Specify clear height, not only nominal eave height. Roof slope, haunch depth, bracing, sprinklers, ducts, and lighting all occupy overhead space. High-bay storage also increases wind-exposed area and may change erection methods. The supplier should identify the lowest obstruction within each operating zone.

3. Define Loading-Dock Geometry and Yard Interfaces

Dock count should reflect peak vehicle demand, dwell time, trailer mix, and growth. Structural drawings must coordinate door openings, dock shelters, levelers, bumpers, canopies, bollards, drainage, and wall framing. Repeated openings create local forces and interrupt normal wall bracing, so alternative bracing bays or moment frames may be required.

The concrete apron, dock wall, and warehouse floor are often supplied by different parties. Define elevations, tolerances, embeds, anchor locations, and responsibility for edge protection. Early interface control reduces site cutting and prevents delays when dock equipment arrives.

4. Engineer Loads for the Actual Site and Operation

Never copy design loads from a previous building without verification. A steel logistics distribution center building requires site-specific wind, snow, rain, seismicity, temperature, exposure, collateral roof loads, suspended services, solar panels, and equipment reactions. Where ASCE practice is specified, ASCE/SEI 7-22 addresses major environmental loads and combinations. Other regions require their own statutory basis.

Racking is usually independent of the building frame, but its slab demands, seismic restraints, and sprinkler arrangement affect the overall facility. If mezzanines, maintenance walkways, or automated storage systems connect to the main frame, their reactions and serviceability limits must be issued to the structural engineer.

5. Coordinate Fire Protection, Smoke Control, and Egress

Commodity class, storage height, packaging, rack configuration, aisle width, and local regulation influence the fire strategy. The steel supplier should not assume responsibility for fire engineering unless it is explicitly included, but the frame must provide space and support for the approved systems.

Coordinate sprinkler mains, branch lines, smoke vents, fire walls, protected escape routes, and compartmentation before fabrication. Structural penetrations and suspended loads should be approved, not improvised on site. Where passive fire protection is required, define its rating, tested system, surface compatibility, and party responsible for application.

6. Match the Envelope to Climate and Energy Targets

Wall and roof specifications influence condensation risk, energy use, daylight, acoustic performance, and maintenance. The tender should state panel type, insulation thickness, thermal transmittance target, air-sealing requirements, vapor-control strategy, coating, and color. Cold storage or humidity-controlled zones require specialist insulated assemblies and carefully detailed interfaces.

Roof drainage must address local rainfall intensity, gutter capacity, downpipe locations, overflow paths, and ponding risk. Daylighting can reduce energy demand, but excessive translucent panels may increase heat gain. Treat envelope decisions as part of operating cost, not as decorative accessories.

7. Specify Fabrication, Coating, and Inspection Evidence

A credible quotation identifies steel grades, connection concept, bolt classes, welding standard, inspection plan, and coating system. Ask how materials are traced from certificates to finished members and how nonconformities are recorded. Fabrication drawings should carry unique member marks that match packing lists and erection drawings.

Quality control should include dimensional checks, weld inspection appropriate to connection criticality, hole and plate verification, trial assembly when necessary, and dry-film thickness records for paint. Read our structural steel fabrication process guide for the manufacturing sequence. For durability planning, ISO 12944-1 introduces the ISO 12944 protective-paint framework. The selected system still depends on corrosivity, surface preparation, target durability, transport damage, and maintenance access.

8. Plan Shipping, Erection, and Future Expansion Together

Export projects require package dimensions, container strategy, lifting points, weather protection, and loading sequence to be considered during detailing. Members needed first on site should not be buried behind later erection packages. Durable piece marks must remain legible after transport and coating touch-up.

An erection plan should identify anchor-bolt surveys, temporary bracing, frame sequence, crane access, bolt tightening, alignment tolerances, and handover inspections. If future expansion is likely, place bracing and utilities accordingly and design the expansion end wall for economical removal. Our guides to steel building packing and shipping and future steel building expansion help buyers define these requirements early.

Standard Warehouse vs High-Throughput Logistics Warehouse

Neither option is automatically better. The correct specification reflects throughput, inventory profile, land, labor, automation, and growth. A steel logistics distribution center building creates value when structural economy is evaluated together with usable pallet positions, travel distance, dock productivity, energy performance, and future flexibility.

Information Required for an Accurate Quotation

Budget prices based only on length, width, and height contain hidden assumptions. To compare proposals for a steel logistics distribution center building fairly, issue a common project brief with the following information:

• Project location, applicable design code, approval authority, and target completion date.
• Building dimensions, clear heights, grid preferences, expansion direction, and site constraints.
• Wind, snow, seismic, rain, temperature, and corrosion-environment data.
• Rack plan, aisle widths, storage height, mezzanines, conveyors, and equipment reactions.
• Dock-door count, vehicle types, canopy dimensions, yard elevations, and concrete interfaces.
• Roof and wall performance, openings, drainage, daylight, ventilation, and fire strategy.
• Required engineering, fabrication, coating, packing, supervision, and documentation scope.

If data is incomplete, ask each supplier to list exclusions and design assumptions in a compliance schedule. This prevents a low quotation from appearing equivalent when it omits engineering, fasteners, trims, touch-up materials, inspection records, or export packing.

How to Compare Steel Warehouse Suppliers

Start with technical compliance, then evaluate commercial terms. A qualified supplier should be able to explain load paths, connection philosophy, fabrication capacity, inspection hold points, coating preparation, packaging method, and erection support. Sample drawings and document indexes are often more informative than a general capability brochure.

Check whether the proposed steel logistics distribution center building is priced from a coordinated model or only a preliminary tonnage allowance. Confirm who signs calculations, who owns design changes, how revisions affect delivery, and how missing information is managed. Review mill certificates, welding qualifications, dimensional reports, coating records, bolt certificates, packing lists, and as-built documentation expected at handover.

Finally, compare total installed risk: foundation reactions, local sourcing, freight utilization, customs documents, site equipment, erection labor, schedule float, and correction responsibility. The most useful supplier is not simply the lowest-cost fabricator; it is the team that makes scope visible and reduces uncertainty from design through delivery.
