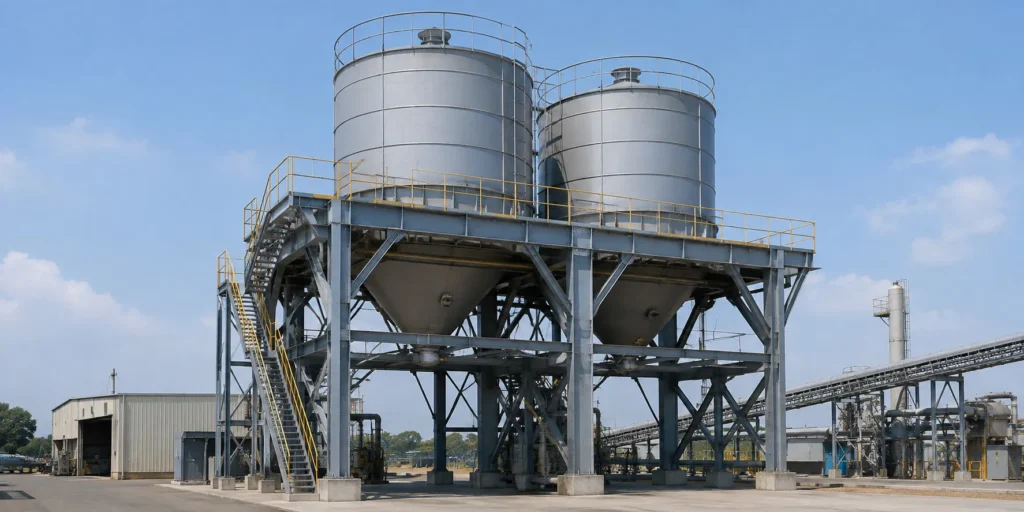

Industrial Steel Silo Support Structure for Bulk Material Storage

An industrial steel silo support structure is designed to support silos, hoppers, storage bins, weighing systems, discharge equipment, and bulk material handling systems in industrial plants. It provides a strong elevated steel frame for materials such as cement, grain, sand, minerals, powder, pellets, aggregates, and other bulk materials that need stable storage and controlled discharge.

Bingfa Steel designs custom industrial steel silo support structure solutions according to silo size, capacidad de almacenamiento, equipment load, support height, discharge clearance, platform arrangement, access requirements, conveyor connection, carga de viento local, requisitos sísmicos, foundation conditions, and project installation needs. Whether your project needs a single silo frame, multiple silo supports, a hopper support structure, or an integrated bulk material storage system, we can provide a practical steel structure solution for your industrial project.

What Is an Industrial Steel Silo Support Structure?

An industrial steel silo support structure is a steel frame system used to support elevated silos, storage tanks, hoppers, bins, and related bulk material equipment. It usually includes steel columns, main beams, secondary beams, cross bracing, base plates, pernos de anclaje, access platforms, stairs, handrails, and connection components.

Unlike a simple ground-mounted silo arrangement, an elevated steel support structure allows bulk materials to be discharged by gravity into trucks, conveyors, screw feeders, weighing systems, packaging equipment, or processing lines. The structure must be designed to carry the vertical load of the silo, the stored material load, equipment load, carga de viento, seismic load, and dynamic effects from loading and unloading operations.

A well-designed steel silo support structure helps improve material flow, acceso al equipo, maintenance safety, and overall plant operation efficiency.

Where Are Industrial Steel Silo Support Structures Used?

Industrial steel silo support structures are used in many plants that require bulk material storage, weighing, feeding, or processing. The structure can be designed for indoor or outdoor use, depending on the project layout and material-handling process.

Las aplicaciones comunes incluyen:

• Cement silo support structures
• Grain silo support frames
• Sand and aggregate storage systems
• Mineral powder storage structures
• Fly ash silo support structures
• Lime and gypsum storage systems
• Plastic pellet storage silos
• Chemical powder storage bins
• Hopper support structures
• Bulk material weighing and discharge systems
• Industrial batching plants
• Processing and packaging plants

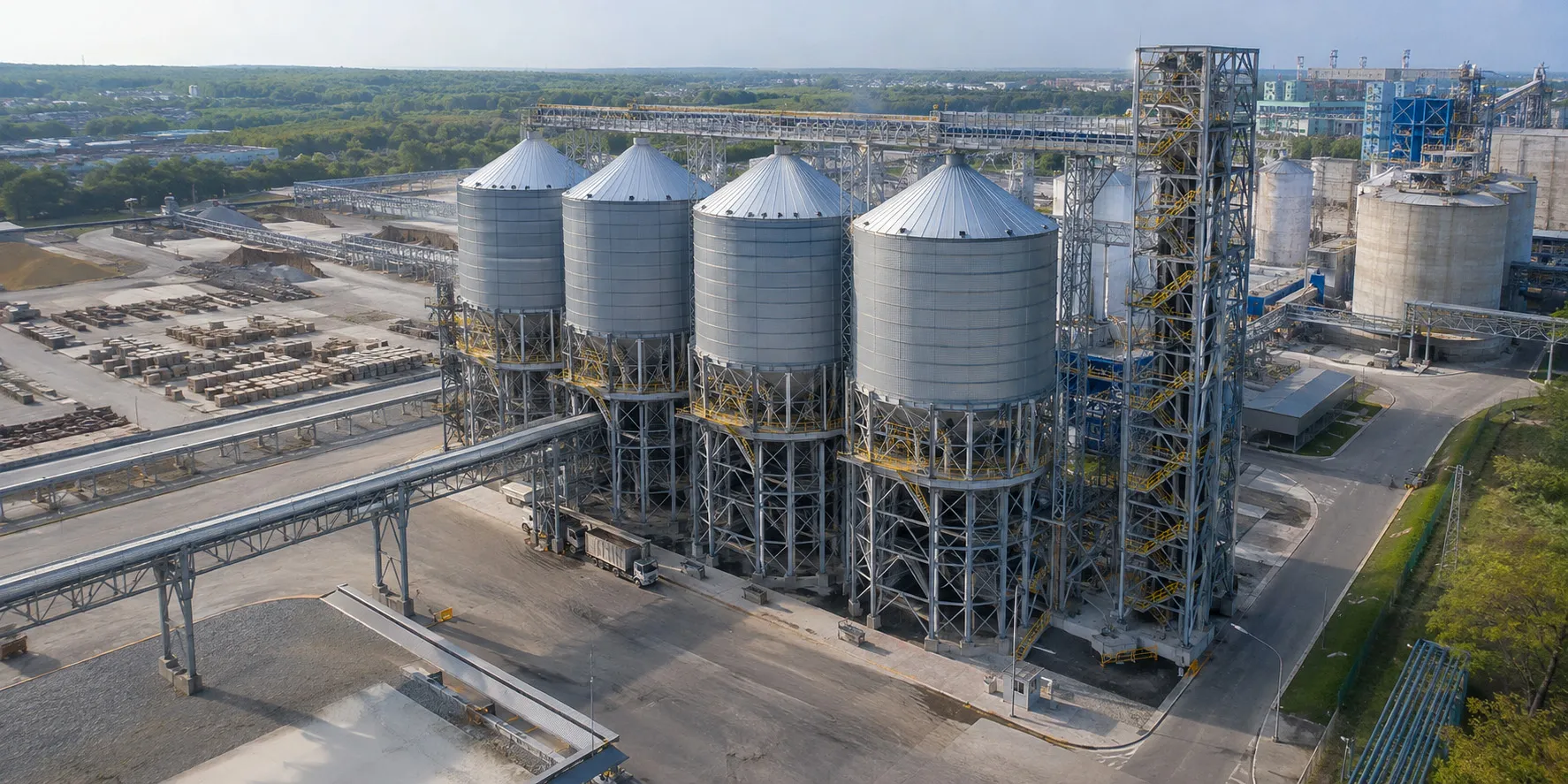

For projects that require several silos in one line, the steel support frame can be designed as a connected structure with shared access platforms, stairs, sistemas de refuerzo, and maintenance walkways.

Key Benefits of an Industrial Steel Silo Support Structure

A custom industrial steel silo support structure provides several practical advantages for plant owners, contratistas, engineers, and industrial project buyers.

• Strong Load-Bearing Capacity: columnas de acero, vigas, and bracing systems provide reliable support for silos, hoppers, stored materials, discharge equipment, and maintenance platforms.
• Flexible Equipment Layout: The support frame can be designed around silo quantity, silo diameter, discharge height, truck clearance, conveyor position, and process equipment arrangement.
• Efficient Bulk Material Discharge: Elevated steel silo structures allow materials to flow downward into conveyors, screw feeders, trucks, packaging systems, or production lines.
• Safe Access for Operation and Maintenance: Steel platforms, stairs, ladders, handrails, guardrails, and grating floors can be arranged for inspection, cleaning, operación del equipo, and routine maintenance.
• Factory Fabrication and Bolted Installation: Steel members can be fabricated, drilled, marked, painted or galvanized in the factory, then assembled on site with bolted connections for efficient installation.
• Suitable for Overseas Projects: Prefabricated steel silo support structures can be packed and shipped by container, making them suitable for export projects and international industrial plants.

Custom Industrial Steel Silo Support Structure Design

Every bulk material storage project has different equipment requirements. The steel support structure should be designed according to the real silo system, discharge method, and plant layout rather than using a fixed standard frame for all projects.

Los factores de diseño importantes incluyen:

• Silo quantity and arrangement
• Silo diameter and height
• Storage capacity and material density
• Total filled silo load
• Required support height
• Discharge clearance below the silo
• Conveyor, feeder, or truck loading position
• Platform and stair arrangement
• Maintenance access requirements
• Wind load and seismic load
• Requisito de tratamiento de superficie
• Foundation and anchor bolt layout
• Transportation and container loading plan

For multiple silos, the support structure can be designed with shared steel platforms, cross bracing, connecting walkways, pipe supports, equipment supports, and integrated access routes. This helps reduce unnecessary steel quantity while improving operation and maintenance convenience.

Main Components of an Industrial Steel Silo Support Structure

Main Steel Support Frame

The main steel support frame includes steel columns, main beams, horizontal beams, and support brackets. These members carry the main loads from the silo, stored material, equipment, viento, and seismic forces. The column size, beam size, and frame layout are selected according to the silo capacity, support height, and project design requirements.

Cross Bracing System

Cross bracing members help improve the lateral stability of the silo support structure. They are especially important for tall support frames, outdoor structures, high wind areas, and seismic regions. The bracing layout should be coordinated with equipment clearance, rutas de acceso, discharge openings, and maintenance space.

Silo Seat and Equipment Support

The upper support area can be designed with silo seats, ring beams, support brackets, or equipment frames according to the silo type and connection method. If the system includes hoppers, load cells, screw feeders, valvulas, weighing equipment, or discharge chutes, these parts should be considered during the structure design stage.

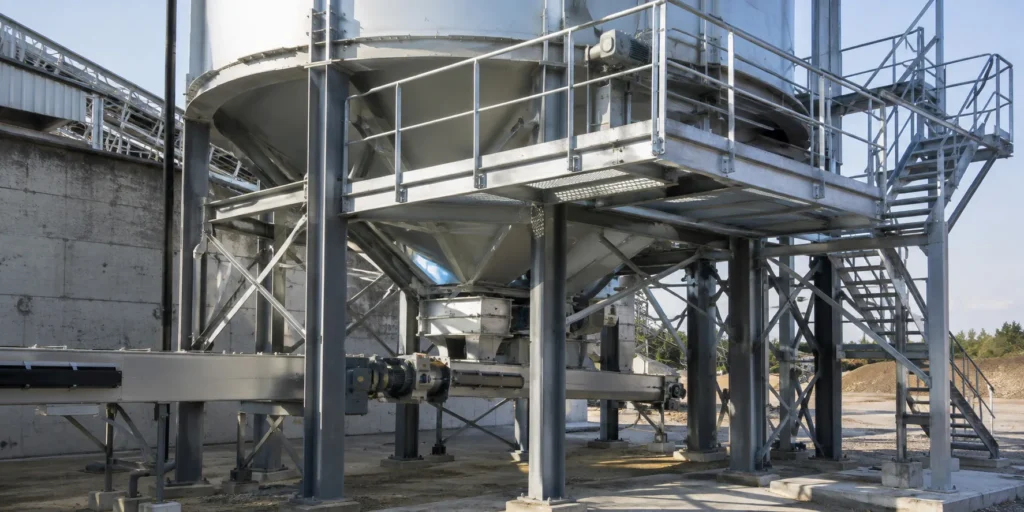

Access Platform and Stair System

Steel platforms, stairs, ladders, handrails, guardrails, and grating floors can be added for inspection, operation, and maintenance. Access platforms are commonly arranged around silo discharge points, valve areas, weighing systems, observation points, and equipment maintenance zones.

Foundation Connection and Anchor Bolts

The steel columns are connected to concrete foundations through base plates and anchor bolts. Accurate anchor bolt positioning is important for smooth installation and correct structural alignment. The foundation design should consider the silo load, equipment load, local soil conditions, carga de viento, y requisitos sísmicos.

Tratamiento superficial

The steel silo support structure can be painted or hot-dip galvanized according to the working environment. For outdoor plants, humid areas, chemical environments, or long-term industrial use, suitable anti-corrosion treatment should be selected before fabrication.

Custom Steel Silo Support Structure Options

An industrial steel silo support structure can be customized for different plant layouts and storage systems. Common options include:

• Single silo support frame
• Multiple silo support structure
• Hopper support structure
• Elevated bin support structure

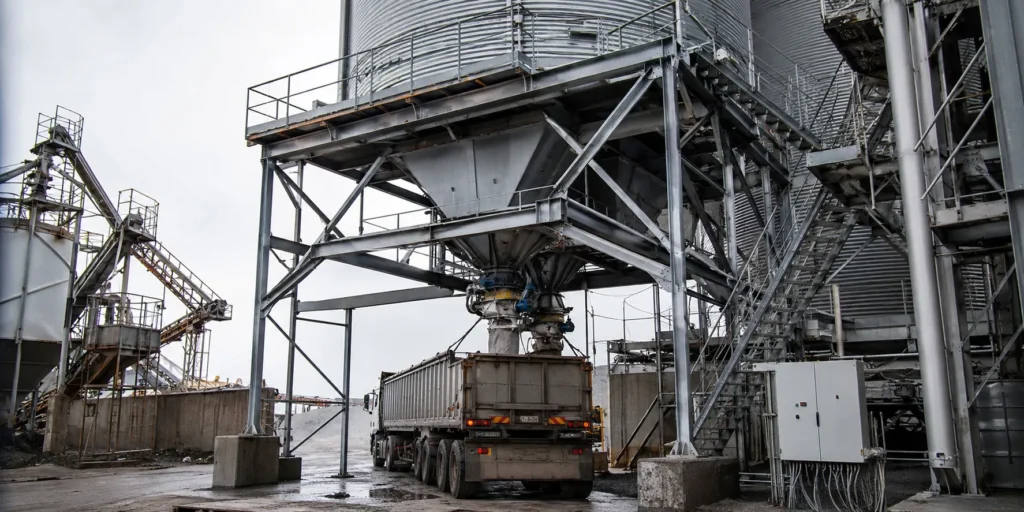

• Truck loading clearance design
• Conveyor connection support
• Screw feeder and discharge equipment support
• Weighing system support frame
• Maintenance platform and stair system
• Hot-dip galvanized surface treatment
• Painted steel surface treatment
• Outdoor weather-resistant design
• Bolted connection design for site assembly
• Export packing and container loading support

The structure can also be coordinated with pipe routes, bandejas de cables, dust collectors, bucket elevators, belt conveyors, process equipment, and surrounding industrial buildings.

• Sistema principal de estructura de acero: columnas de acero, main beams, secondary beams, and support brackets form the main load-bearing framework for the silo system.
• Bracing and Stability Components: Cross bracing, tie members, gusset plates, and connection plates improve overall structural stability.
• Silo and Hopper Support Components: Ring beams, support seats, hopper frames, equipment brackets, and discharge support members can be supplied according to project requirements.
• Access and Safety Components: Steel platforms, stairs, ladders, handrails, guardrails, grating floors, toe boards, and service walkways support safe operation and maintenance.
• Foundation Connection Parts: Base plates, pernos de anclaje, stiffeners, and related connection components help connect the steel support frame to the concrete foundation.
• Pernos, Trims, and Accessories: Pernos de alta resistencia, connection plates, edge trims, platform accessories, and related parts complete the steel structure package.

• Custom Silo Support Layout Planning
  We develop industrial steel silo support structure solutions for cement plants, grain storage facilities, mineral processing plants, batching systems, powder storage systems, and bulk material handling projects.
• Fabricación en fábrica y suministro completo.
  Providing steel columns, main beams, secondary beams, cross bracing, silo seats, equipment supports, platforms, stairs, handrails, pernos, base plates, y accesorios relacionados.
• Engineering Support for Bulk Storage Projects
  Steel silo support structures can be planned around silo size, capacidad de almacenamiento, support height, material load, discharge clearance, disposición del equipo, carga de viento, carga de nieve, y requisitos sísmicos.
• Embalaje de exportación y soporte para la entrega de proyectos
  Los componentes de acero se pueden marcar., lleno, and loaded according to project drawings to support overseas shipping and efficient on-site installation.
• Control de calidad y guía de instalación
  Apoyado por ingenieros, especialistas en producción, y personal de control de calidad para ayudar a garantizar una fabricación precisa., diseño práctico, reliable packing, and smooth project delivery.

Industrial steel silo support structures use structural steel as the primary load-bearing system because it provides dependable strength, flexible equipment coordination, fabricación eficiente, and long-term durability for bulk material storage and industrial plant operations.

Información necesaria para una cotización

To provide a suitable quotation for your industrial steel silo support structure, por favor envíenos la siguiente información:

• Silo quantity
• Silo diameter and height
• Storage material
• Storage capacity of each silo
• Required support height
• Discharge method
• Conveyor or truck loading requirement
• Platform and stair requirement
• Ubicación del proyecto
• Local wind load and seismic requirement
• Requisito de tratamiento de superficie
• Drawings or equipment layout, si está disponible

If complete drawings are not available, you can send the basic silo dimensions, material type, capacidad de almacenamiento, and site layout. Our team can help discuss a practical steel silo support structure solution based on your project requirements.

¿Por qué elegir Bingfa Steel??

Bingfa Steel provides custom industrial steel structures for processing plants, fábricas, almacenes, material-handling systems, equipment platforms, pipe racks, access platforms, and bulk storage projects. We support customers with steel structure design coordination, servicios de fabricación, tratamiento superficial, embalaje de exportación, carga de contenedores, y guía de instalación.

For industrial steel silo support structure projects, we focus on dependable load-bearing design, practical equipment coordination, accurate fabrication, efficient site assembly, y uso industrial a largo plazo. Whether your project requires a single silo frame, multiple silo support structure, hopper support system, or bulk material storage platform, Bingfa Steel can provide a suitable steel structure solution according to your project requirements.

Contact Bingfa Steel to get a custom quotation for your industrial steel silo support structure or bulk material storage project.

For additional technical reference about structural steel construction, también puedes consultar el Instituto Americano de Construcción en Acero.

Bingfa Steel also provides custom estructuras industriales de acero for pipe racks, equipment platforms, conveyor supports, access platforms, and other heavy-duty industrial plant applications.

Preguntas frecuentes

What is an industrial steel silo support structure?

An industrial steel silo support structure is a steel frame system used to support silos, hoppers, storage bins, discharge equipment, access platforms, and bulk material storage systems in industrial plants.

What materials can be stored in a steel silo support system?

It can be used for cement, grain, sand, aggregates, mineral powder, fly ash, lime, gypsum, plastic pellets, chemical powder, and other bulk materials, depending on the silo and equipment design.

Can the silo support structure be customized?

Sí. The silo quantity, support height, espaciado de columnas, platform layout, stair position, discharge clearance, conveyor connection, tratamiento superficial, and foundation connection can be customized according to project requirements.

Can the structure support multiple silos?

Sí. The steel support frame can be designed for a single silo or multiple silos with shared platforms, stairs, sistemas de refuerzo, and maintenance walkways.

What information should I provide for a quotation?

Please provide the silo quantity, silo size, storage material, capacidad de almacenamiento, support height, discharge method, ubicación del proyecto, carga de viento local, seismic requirement, surface treatment requirement, y dibujos si están disponibles.
